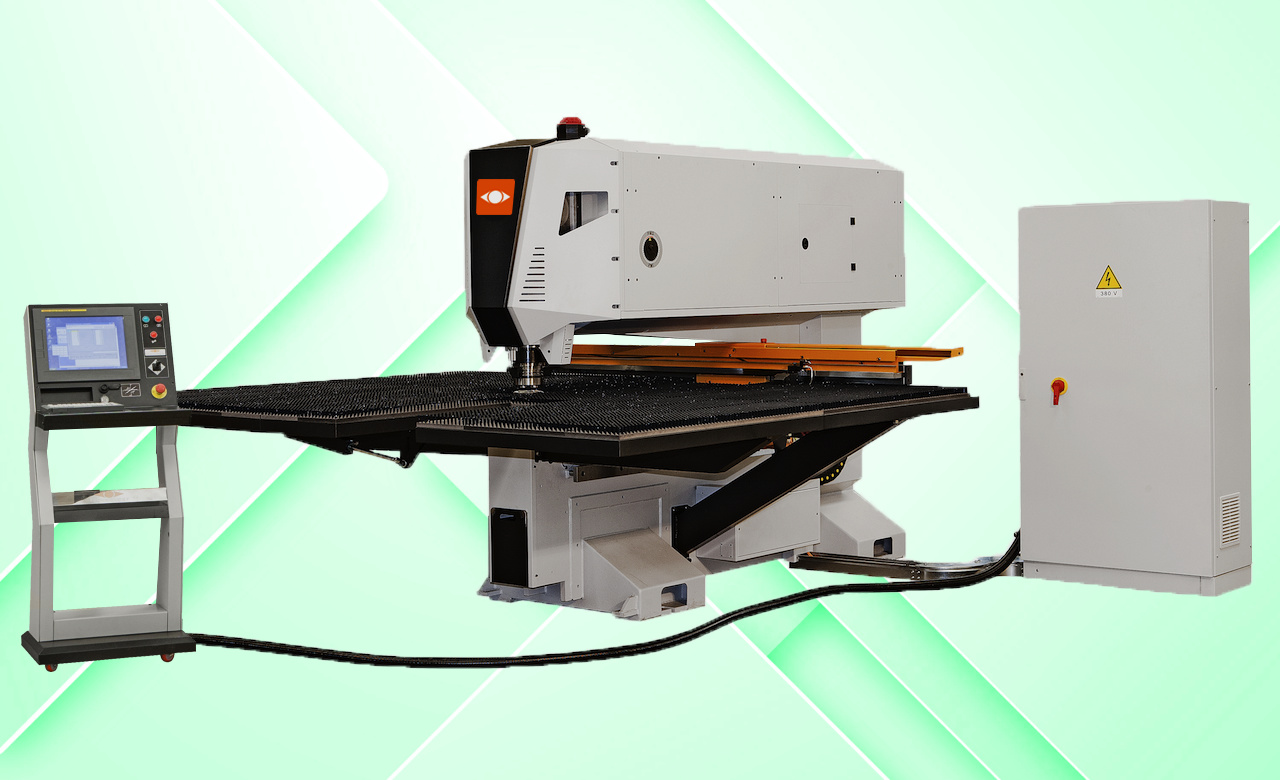

    TecnoPunch Alpha Matic 5

    THE FIRST LEVEL OF AUTOMATIC PUNCHING MACHINES

    The ideal machine to enter the world of punching, at affordable prices. It is the evolution of Tecnumerik: the advanced CNC functions and the rotating head allow the orientation of any type of tool, as well as the possibility of using multi-tools, drag tools for cutting, ribs and off-set, and threader.
    The Speedy Setup system, which allows manual tool change in just 12 seconds, is a feature that makes it unique in the single-punch market.
    e-Catalog
    Datasheet

    MODEL

    • TECNOPUNCH
    • Max. punching force
    • Maximum thickness
    • Working size (without reposition)
    • Working size (with reposition)
    • 256 U.M.
    • 250 kN
    • 6.5 mm
    • 1250 x 1500 mm
    • 1250 x 3000 mm
    GET A QUOTE

    ACTION VIDEO

    GET A QUOTE

    TECNOPUNCH

    The ultimate expression of punching

    The time has come for a change and go beyond the limits of the old turret punch press concept. TECNOPUNCH technology is the most innovative in the world of punching machines.

    Combining simplicity, innovation, performance and productivity at best.

    TECHNOPUNCH PUNCHING MACHINES

    The possibility of rotating any tool from 0° to 360° reduces the number of tools to be purchased and shortens processing times. Sheet metal waste is reduced to a minimum thanks to complex nesting operations.
    The punch press configuration can be customized by inserting any type of tool in each station. The innovative Speedy Setup system enables to equip every single station in just 12 seconds.
    It allows you to process sheets that are larger than the punching machine’s working area, and to load them both frontally and sideways.

    TURRET PUNCHING MACHINES

    This implies buying several tools already oriented, complicating machine programming, slowing down production times and increasing the amount of material waste.
    The turret configuration is fixed and cannot be customized. It takes more than 1 minute to equip every single station.
    It does not allow the processing of sheets larger than the working area of the punching machine and the sheets can only be loaded sideways.

    CNC functions for special processing

    With TP ALPHA you can go beyond the simple sheet metal cutting since you can easily implement deformation works such as slots, countersinks, logos, embossing. The TP Alpha can be employed for small/medium productions or combined with other cutting systems such as lasers and automatic punching machines.
    • Emboss
    • Fine contouring
    • De-burring
    • Forming
    • High speed forming
    • Bending
    • Marking
    • Coin
    • Tapping
    • Engraving

    Highest connectivity and integration

    Teleassistance

    With a simple Internet connection we can safely carry out a comprehensive error diagnosis, drastically reducing machine downtime.

    Industry 4.0 Ready

    Thanks to its innovative technologies, the new servo drive TP Alpha Matic 5 can be integrated into Industry 4.0 systems.

    • Automatic sheet metal repositioning

      This system allows you to work metal sheets which are larger than the X-axis stroke and enables you to perform more than one repositioning during production.

    • 18,5″ touch-screen monitor

      The touch-screen monitor together with customized HMI (Human Machine Interface) simplify input operations.

    • Sheet metal load on three sides.

      Lateral and frontal metal sheet loading, with the opportunity to process non-standard metal sheets also on the Y-axis.

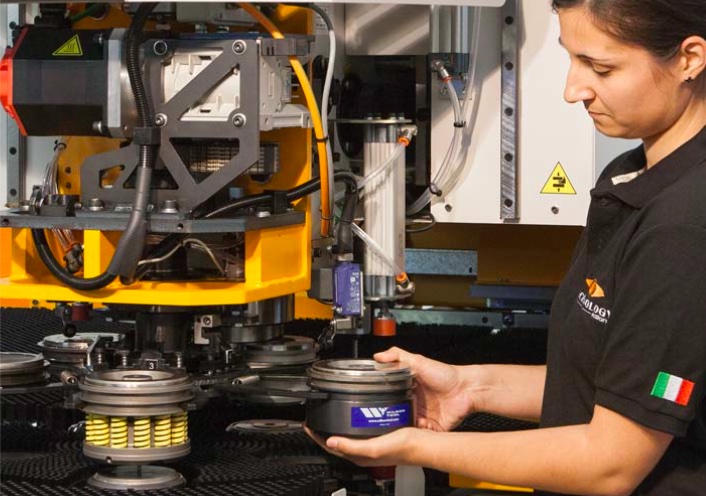

    SPEEDY Setup

    The world’s fastest tool change system

    The Speedy Setup technology applied to the TP Alpha Matic 5 allows you to equip every single station with the tool in just 12 seconds.
    GET A QUOTE

    Smart System

    A smart, versatile and space-saving system

    Smart Turret is the only compact and versatile automatic tool changing system on the market. Its 5 stations are all equipped with auto-index technology that allows the rotation of the tool from 0° to 360°. Smart Turret offers a customized configuration and exploits the Speedy Setup system to equip every single station in just 12 seconds.

    High power and low energy consumption

    1
    Tons OF POWER
    1
    Kw STAND-BY CONSUMPTION
    1
    MONTHS WARRANTY

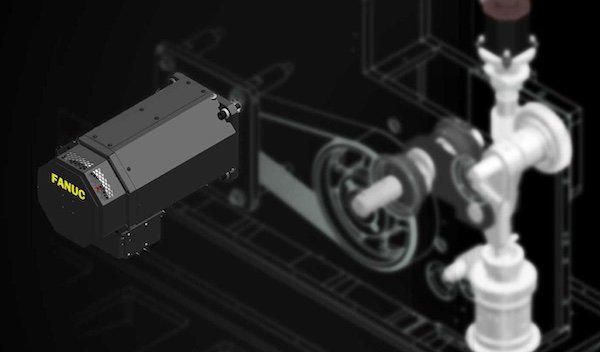

    Alpha Matic 5

    Servo drive is better

    It is equipped with an advanced servo drive punching unit without any hydraulic oil and with low energy consumption.
    • Motor FANUC
    • Fully programmable Stroke, Speed, Accelaration and Punch Penetration
    • NO Hydraulic Oil
    • Funzione SoftPunch function to reduce noises
    • DualCam allows high-frequency sheet metal processing without motor overheating

    Other major technologies

    CNC Fanuc

    TECNUMERIK is equipped with components provided by the world leader FANUC (CNC, motors, drives and PCs). FANUC guarantees the availability of spare parts for 25 years and offers assistance in 108 countries thanks to its extensive network of subsidiaries.

    Punching Tools
    TECHNOLOGY punching machines have always been equipped with the best punching tools. TP Beta can be equipped with TRUMPF style tools but is totally compatible with TECHNOLOGY style tools.

    A more efficient way of working

    The advanced integrated auto-index system allows any tool to be oriented from 0° to 360°, with an accuracy of 0.01°. Thus the number of tools to be purchased is drastically reduced. Programming the punch press has never been easier, as well as performing complex nesting to optimize sheet metal waste.

    Customize the configuration of the turret tool change system

    The TP Alpha Matic 5 punching machine can be equipped with TRUMPF or TECHNOLOGY style tools. You can customise the configuration and choose how to equip each single station with standard, special and/or multi-tool tools all auto-index.
    FROM
    1
    AUTO-INDEX TOOLS
    TO
    1
    AUTO-INDEX TOOLS
